發明專利號(Invevtion patent No.):ZL201010539862.3




|
技術參數表
Sheet of technical parameter |
|||||||||
|
額定速度
Rated speed (m/s) |
0.25-2.5
|
||||||||
|
限速器動作速度
Acting speed of governor(m/s) |
≤3.23
|
||||||||
|
允許質量P+Q
Permitted load (kg) |
750-3200
|
||||||||
|
適用電梯導軌寬度
Width of applied guide rail (mm) |
10、15.88、16
|
||||||||
|

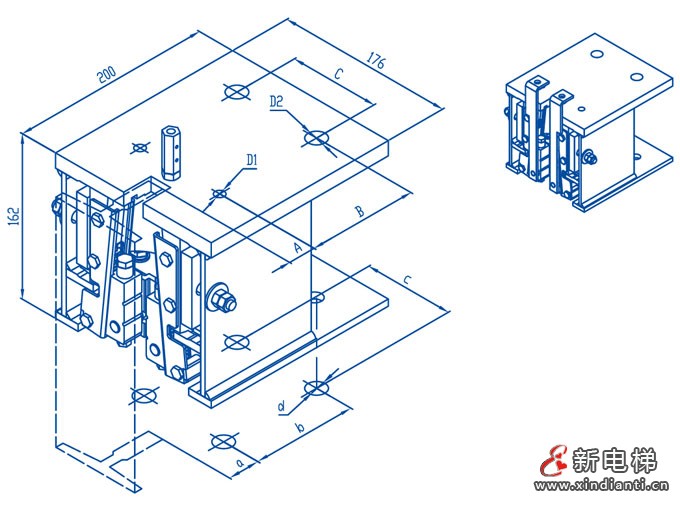

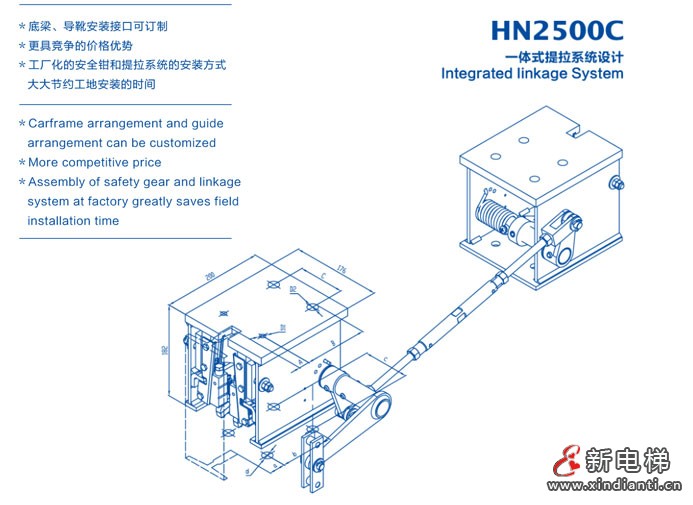

外形尺寸(長×寬×高)
External dimension (L×W×H) (mm) |
176×180×162
|
||||||||
